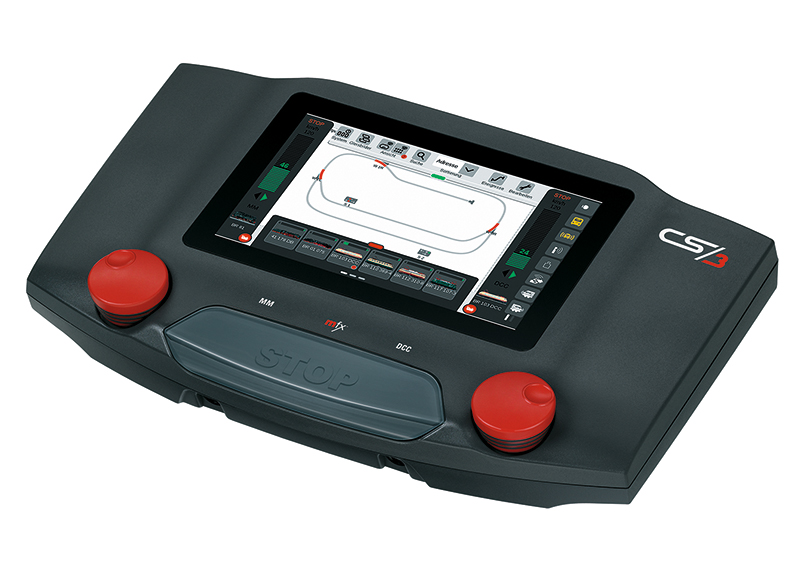

Central station 3

Passande transformator Märklin 60041

• Digital multiple protocol controller (mfx, mfx+, DCC, Motorola).
• High resolution, modern color touch screen.
• Built-in, central track diagram control board.
• Housing with a central stop button and 2 rotary knobs, all three of rugged industrial quality.
• Up to 32 controllable locomotive functions.
• 2 built-in locomotive card readers.
• Built-in speaker.
• Built-in SD card slot.
• Built-in, powerful Booster.
• Output: 3.0 amps when using a 60 watt / 50 watt Märklin switched mode power pack for H0 and N Gauge.
• Output: 5.0 amps when using a 100 watt Märklin switched mode power pack exclusively for 1 Gauge and LGB.
• Up to 320 Motorola and 2,048 DCC solenoid items can be controlled.
• Route control (including shuttle train control).

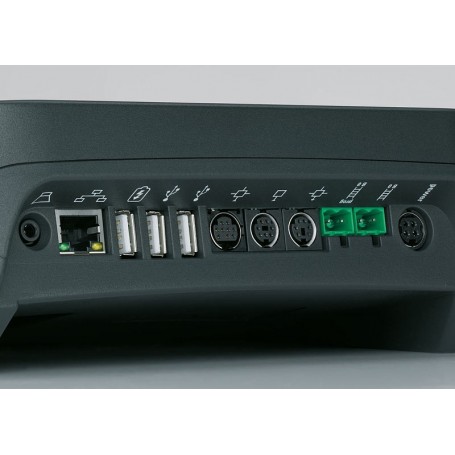

• 2 USB hosts such as for mouse, keyboard, USB stick, etc., and 1 USB charging socket.
• Direct connections for 2 Mobile Stations and a Bus expansion device.
• Connections for network, external speakers, Märklin Bus.
• Expansions can be connected using the Märklin Bus.
